WSC4P-4TN-1
Description
WELD STRAIGHT CONNECTOR (TightFLARE), 1/4″P X 1/4″TF, PFA W/ PVDF NUT
We've got 23 products for you
| Name | Description | Leg 1 | Leg 2 | Leg 3 | Leg 4 | Orifice | Body | Nut | |
|---|---|---|---|---|---|---|---|---|---|

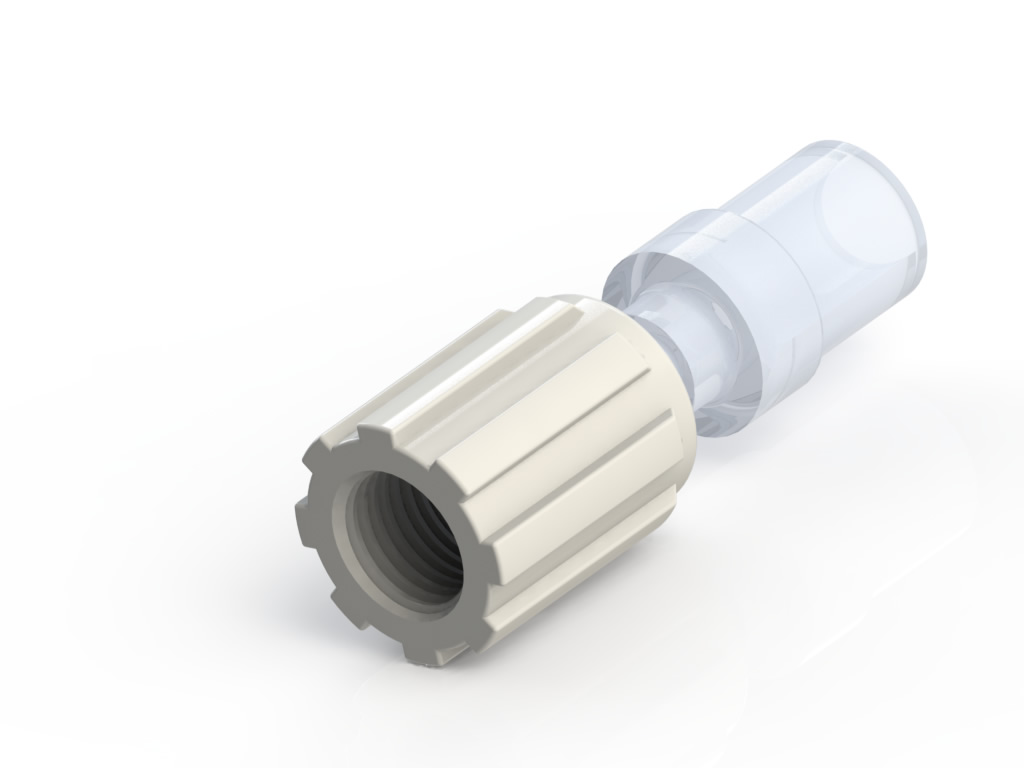

| WSC4P-4TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/4"P X 1/4"TF, PFA W/ PVDF NUT | 1/4" Pipe | 1/4" TightFLARE | N/A | N/A | 0.15 | PFA | PVDF | |
|
|||||||||

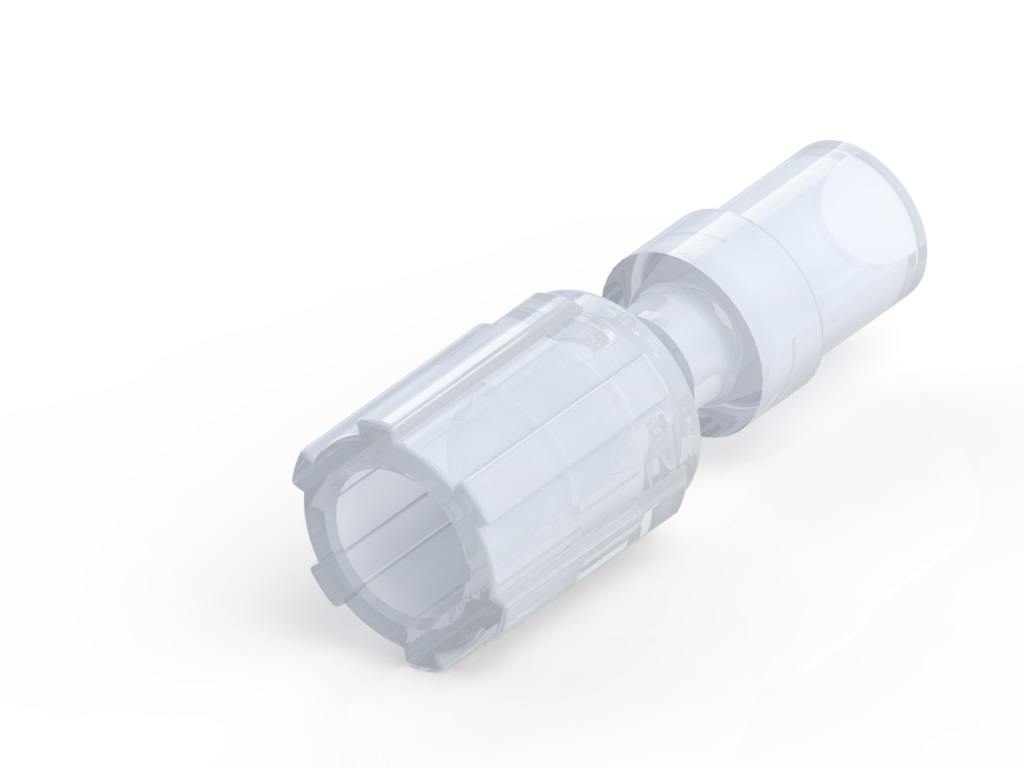

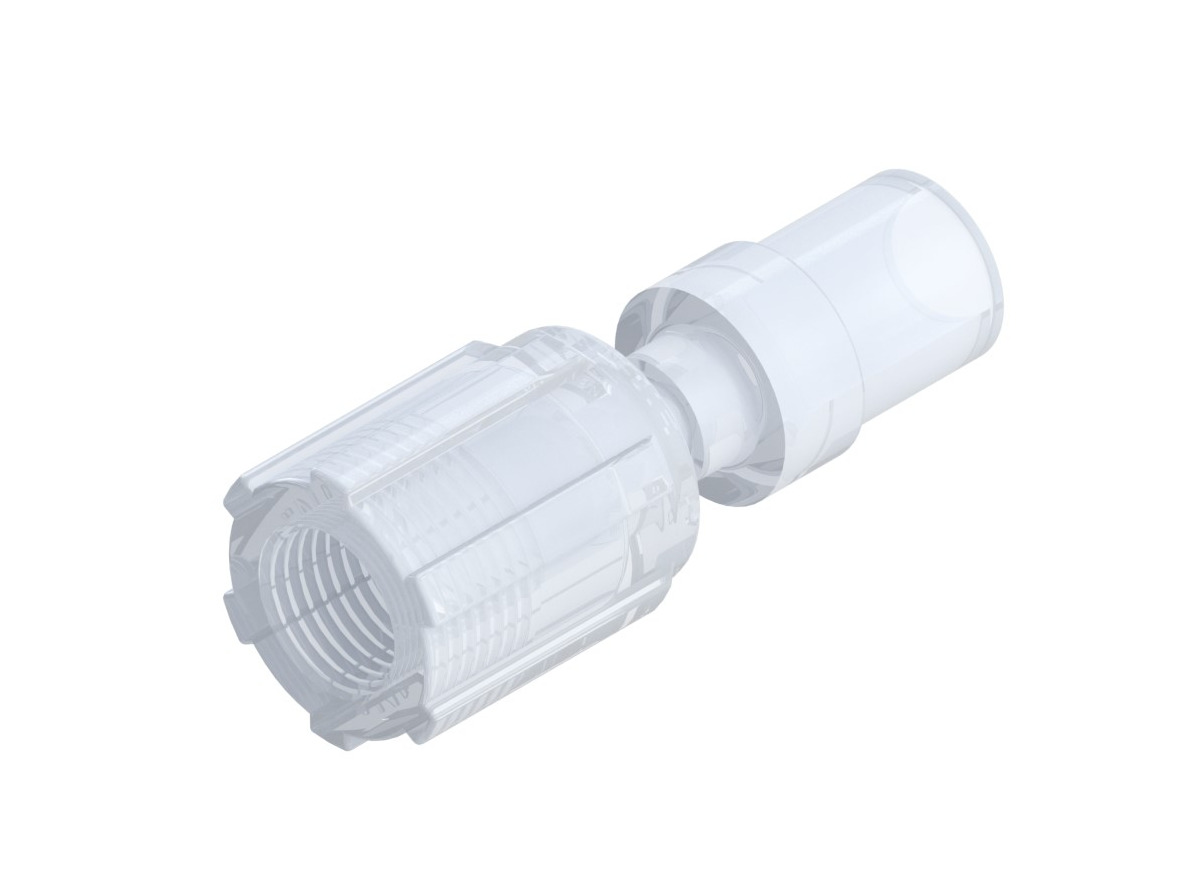

| WSC4P-4TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/4"P X 1/4"TF, PFA W/ PFA NUT | 1/4" Pipe | 1/4" TightFLARE | N/A | N/A | 0.15 | PFA | PFA | |
|
|||||||||

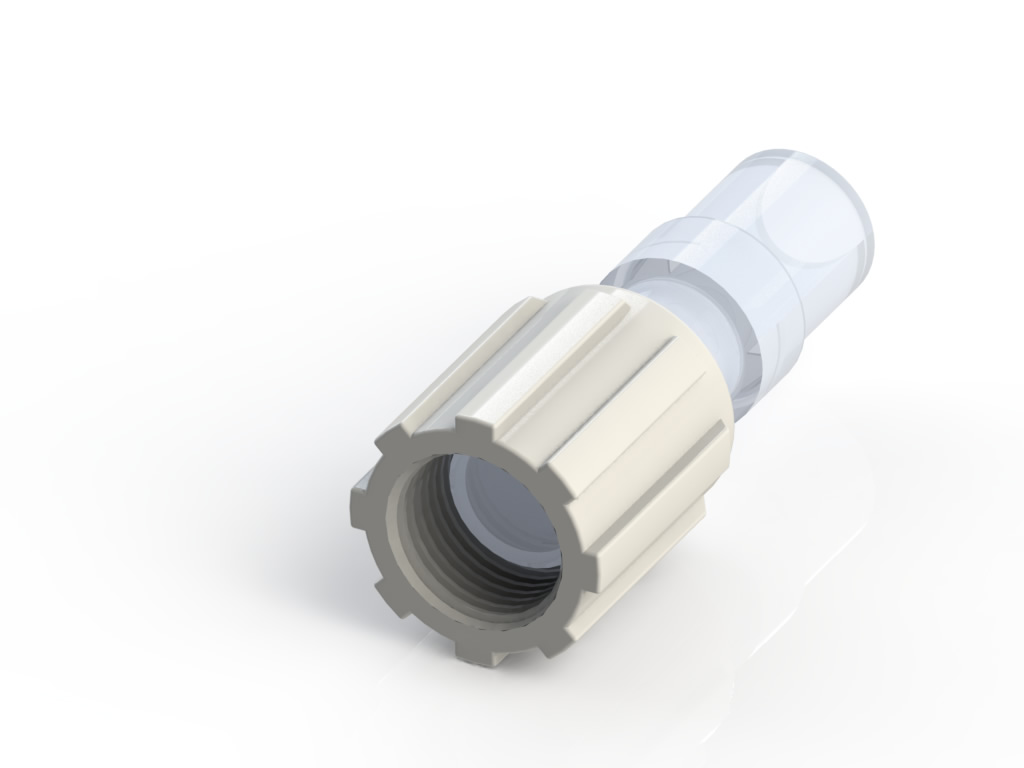

| WSC4P-6TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/4"P x 3/8"TF, PFA W/ PVDF NUT | 1/4" Pipe | 3/8" TightFLARE | N/A | N/A | 0.25 | PFA | PVDF | |
|
|||||||||

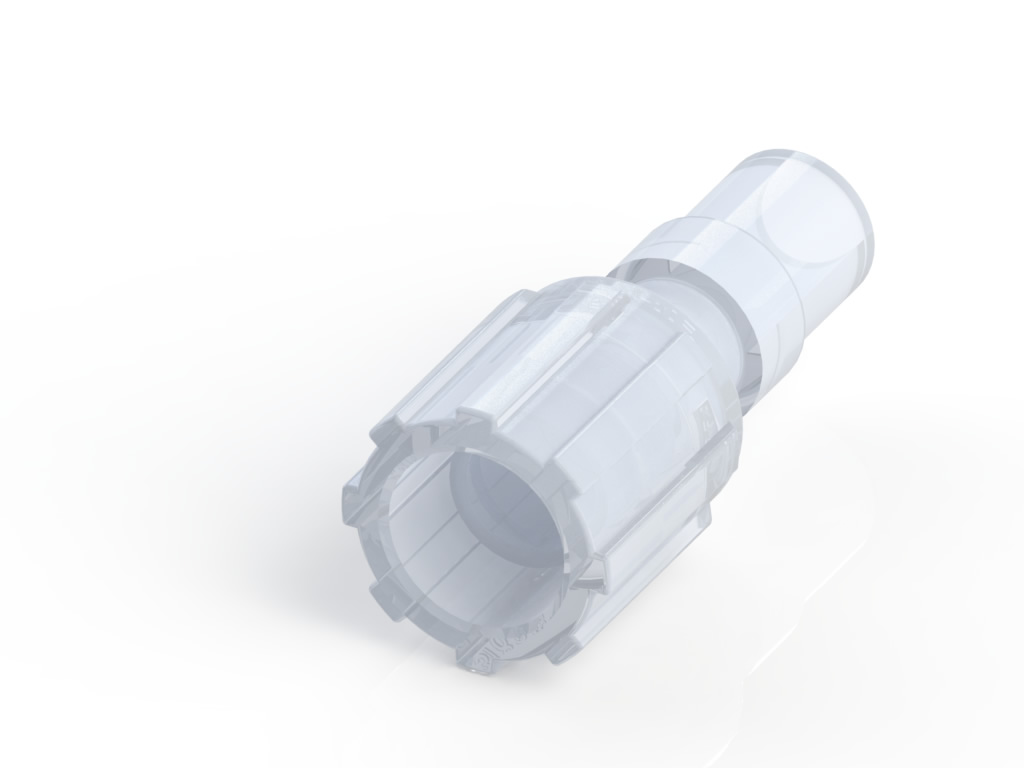

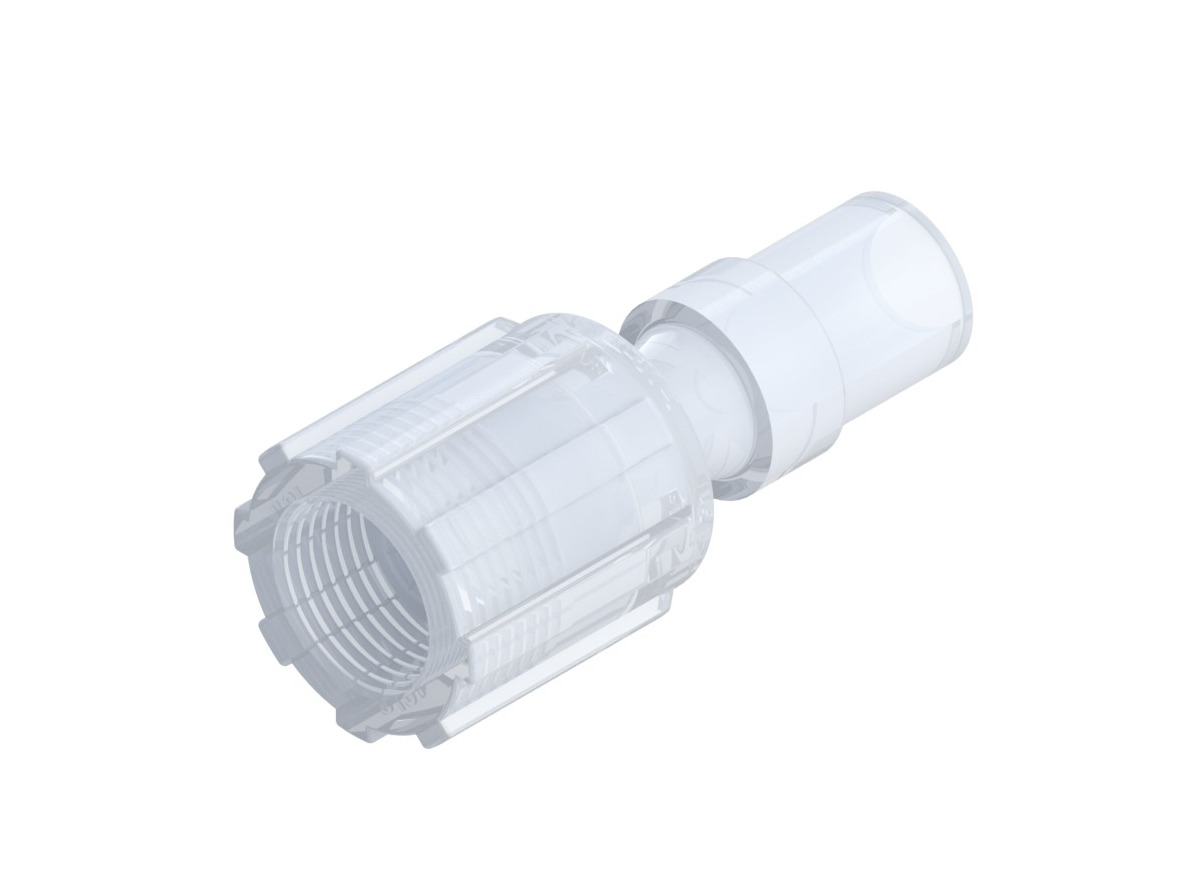

| WSC4P-6TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/4"P x 3/8"TF, PFA W/ PFA NUT | 1/4" Pipe | 3/8" TightFLARE | N/A | N/A | 0.25 | PFA | PFA | |
|
|||||||||

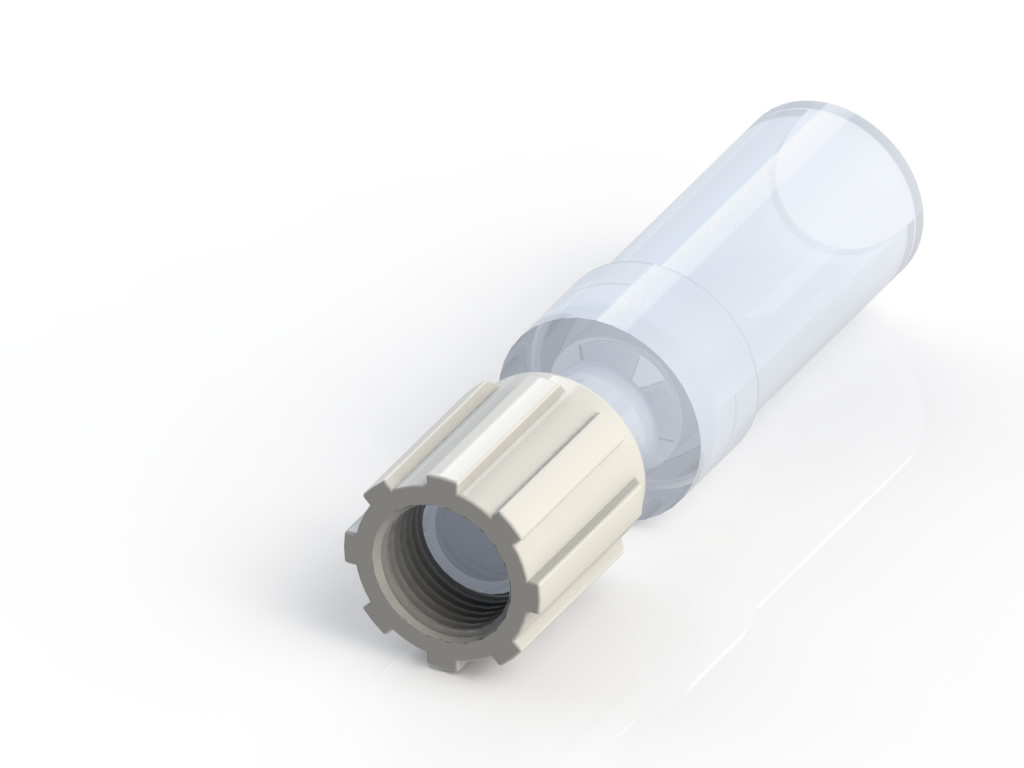

| WSC8P-6TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/2"P x 3/8"TF, PFA W/ PVDF NUT | 1/2" Pipe | 3/8" TightFLARE | N/A | N/A | 0.25 | PFA | PVDF | |
|
|||||||||

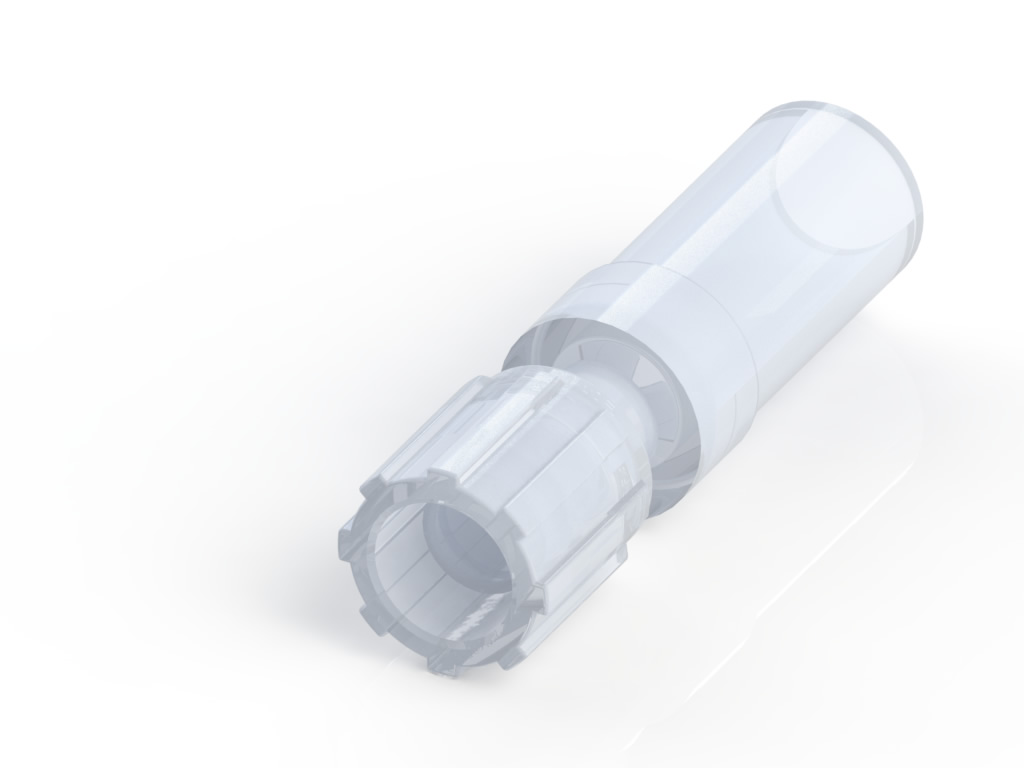

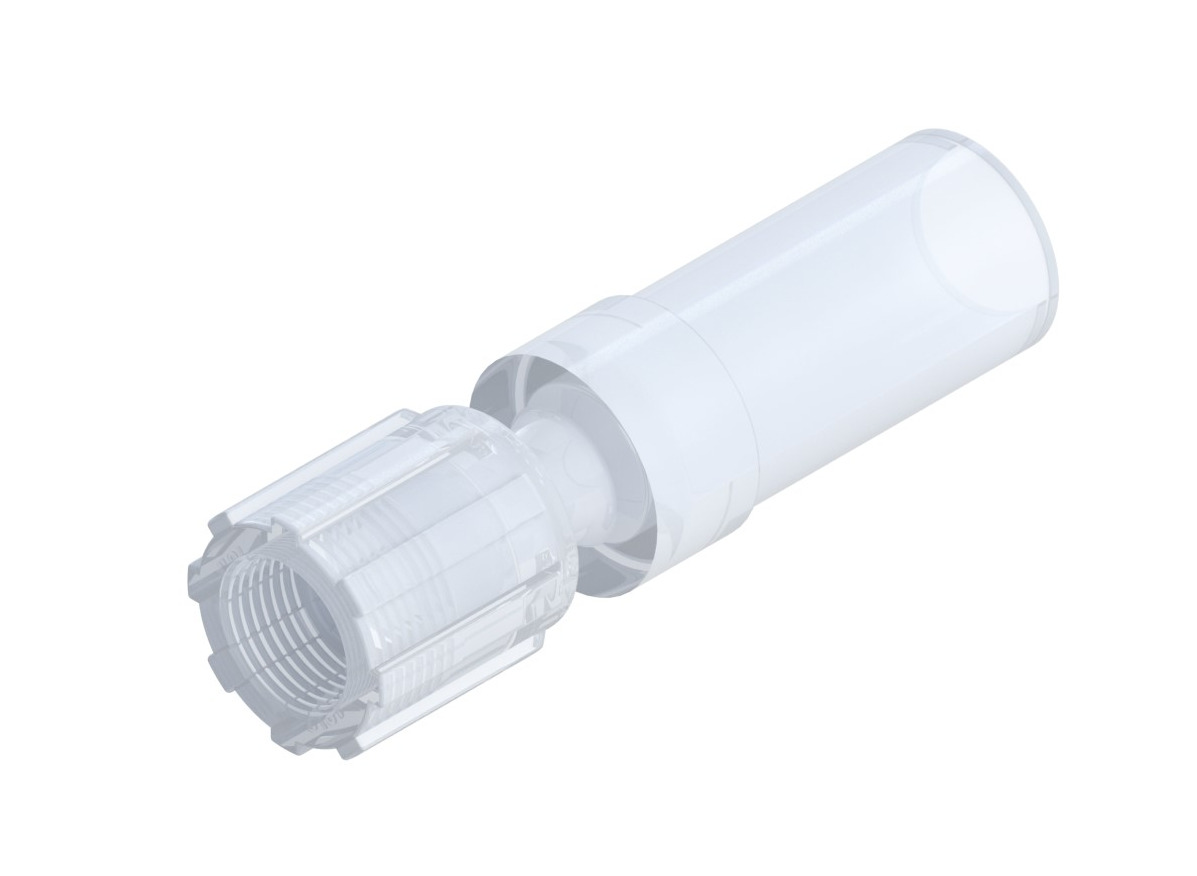

| WSC8P-6TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/2"P x 3/8"TF, PFA W/ PFA NUT | 1/2" Pipe | 3/8" TightFLARE | N/A | N/A | 0.25 | PFA | PFA | |
|
|||||||||

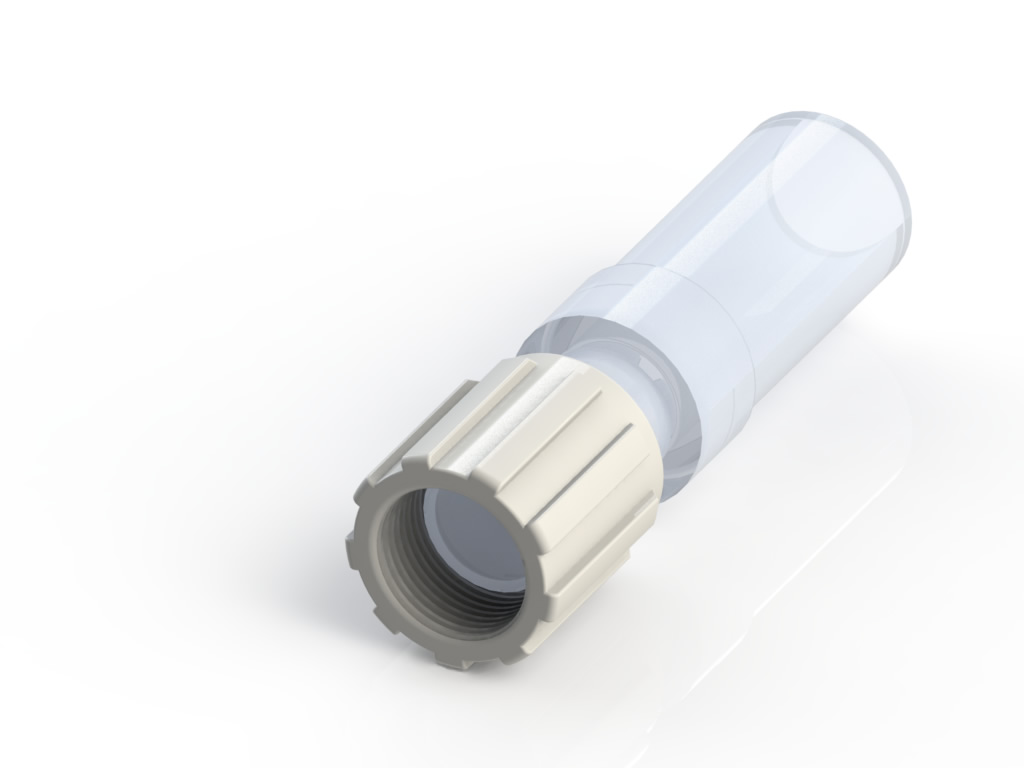

| WSC8P-8TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/2"P x 1/2"TF, PFA W/ PVDF NUT | 1/2" Pipe | 1/2" TightFLARE | N/A | N/A | 0.38 | PFA | PVDF | |
|
|||||||||

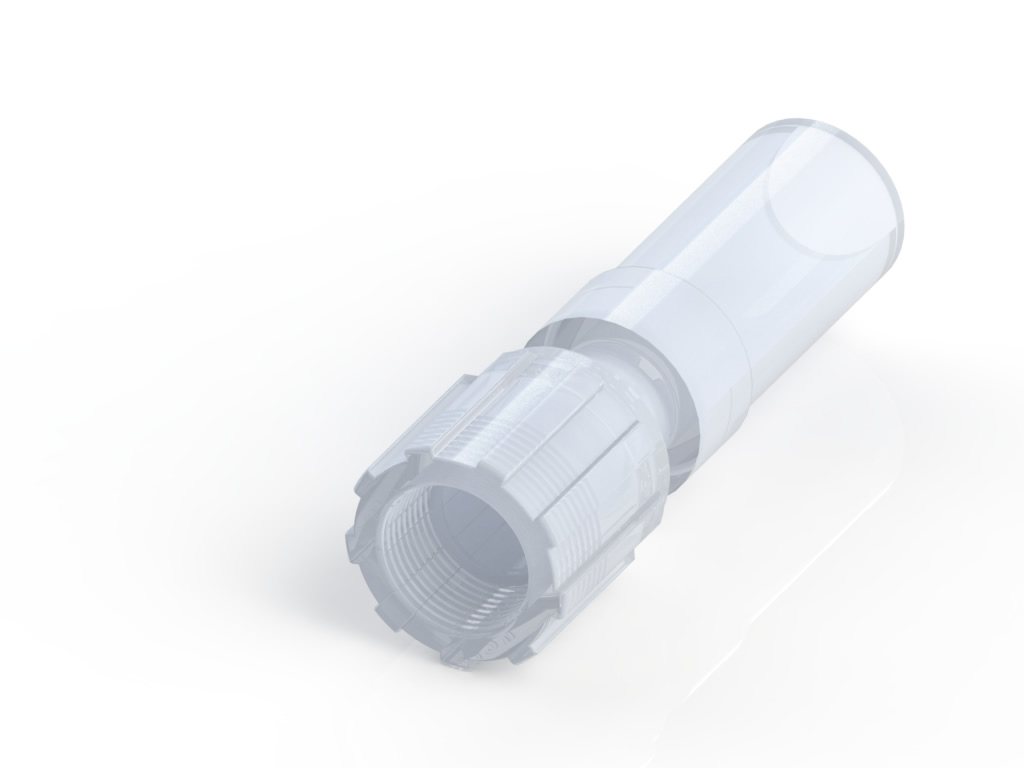

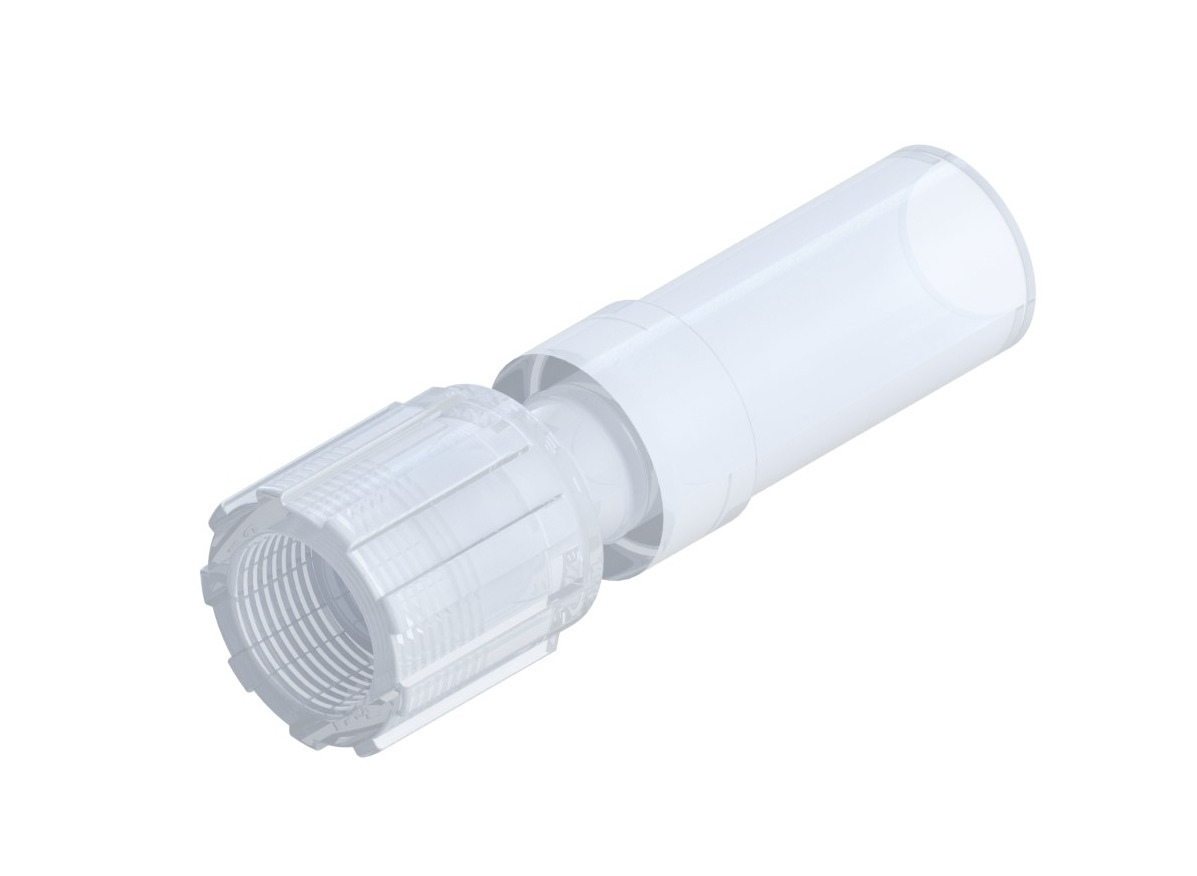

| WSC8P-8TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/2"P x 1/2"TF, PFA W/ PFA NUT | 1/2" Pipe | 1/2" TightFLARE | N/A | N/A | 0.38 | PFA | PFA | |
|
|||||||||

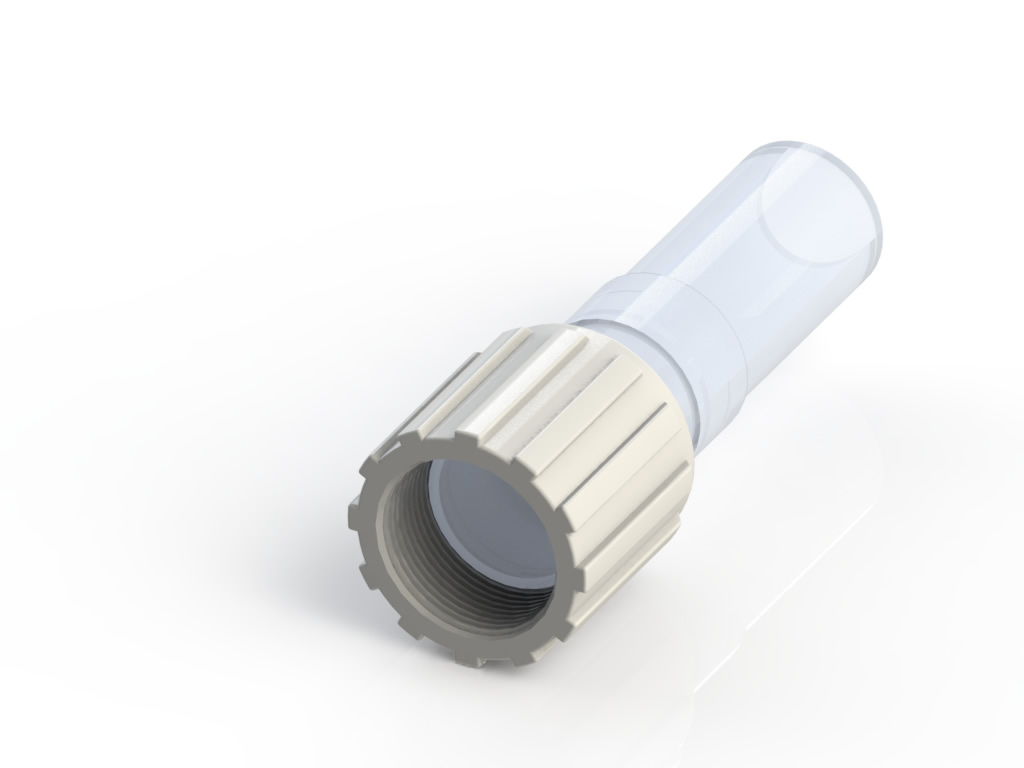

| WSC8P-12TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/2"P x 3/4"TF, PFA W/ PVDF NUT | 1/2" Pipe | 3/4" TightFLARE | N/A | N/A | 0.61 | PFA | PVDF | |
|
|||||||||

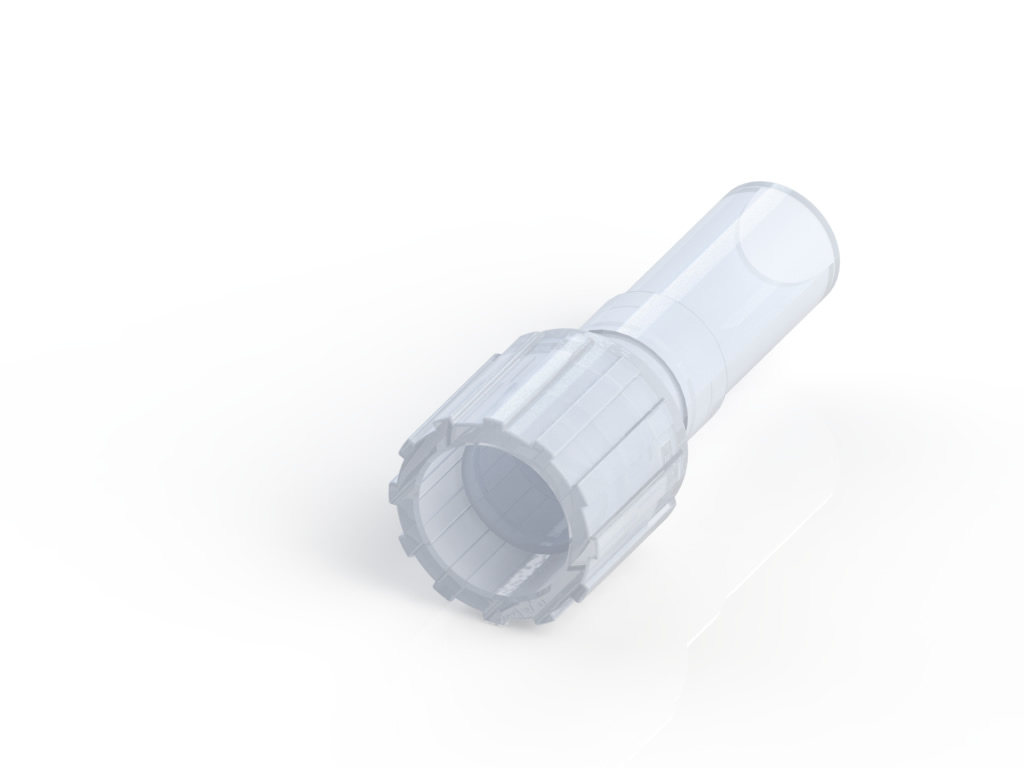

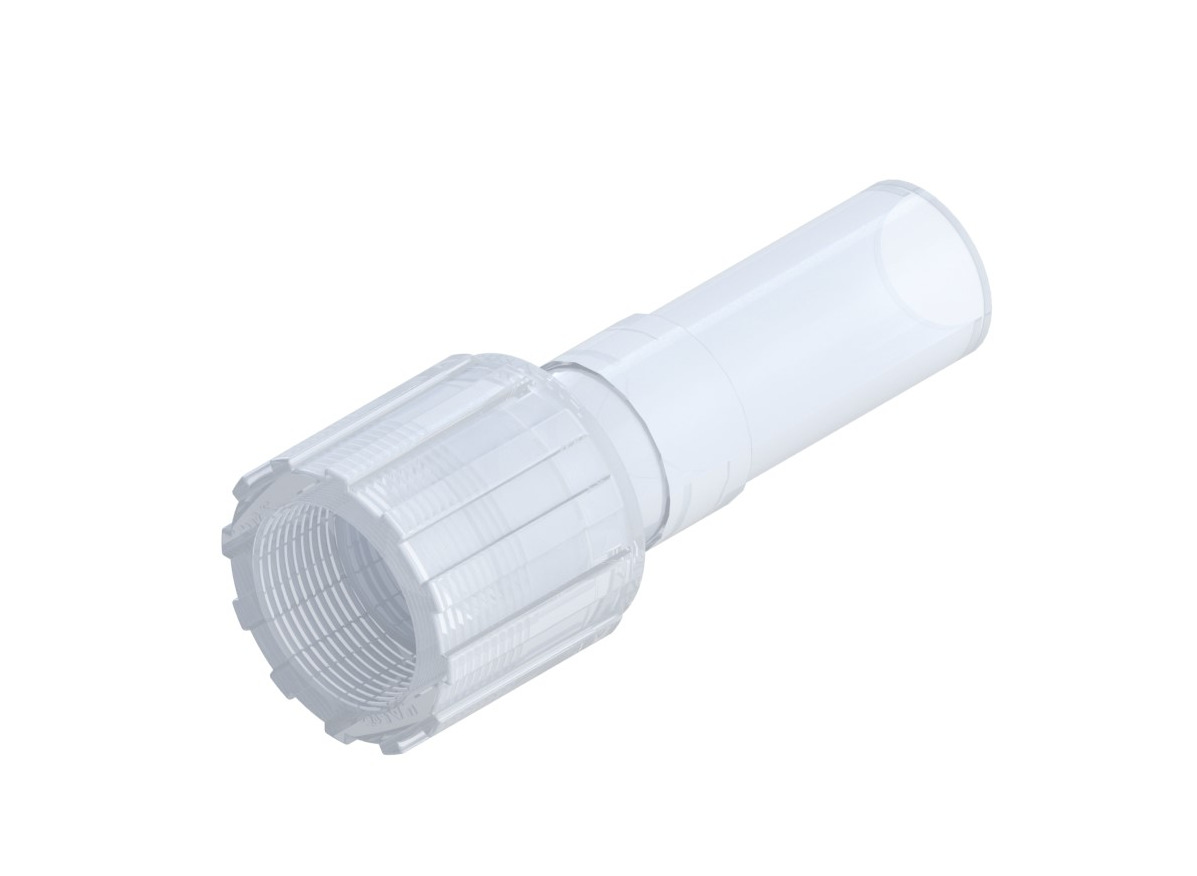

| WSC8P-12TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 1/2"P x 3/4"TF, PFA W/ PFA NUT | 1/2" Pipe | 3/4" TightFLARE | N/A | N/A | 0.61 | PFA | PFA | |
|
|||||||||
| WSC12P-8TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 3/4"P x 1/2"TF, PFA W/ PVDF NUT | 3/4" Pipe | 1/2" TightFLARE | N/A | N/A | 0.38 | PFA | PVDF | |
|
|||||||||

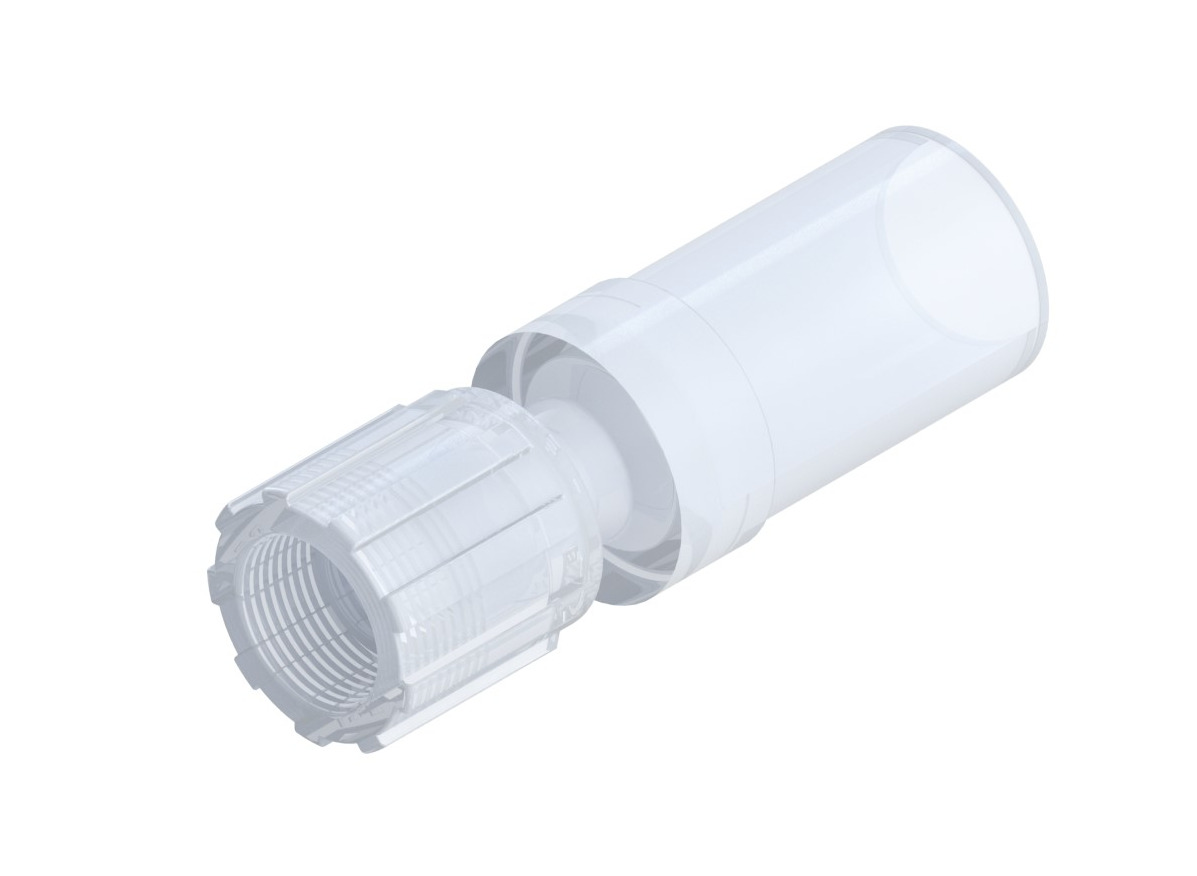

| WSC12P-8TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 3/4"P x 1/2"TF, PFA W/ PFA NUT | 3/4" Pipe | 1/2" TightFLARE | N/A | N/A | 0.38 | PFA | PFA | |
|
|||||||||
| WSC12P-12TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 3/4"P X 3/4"TF, PFA W/ PVDF NUT | 3/4" Pipe | 3/4" TightFLARE | N/A | N/A | 0.63 | PFA | PVDF | |
|
|||||||||

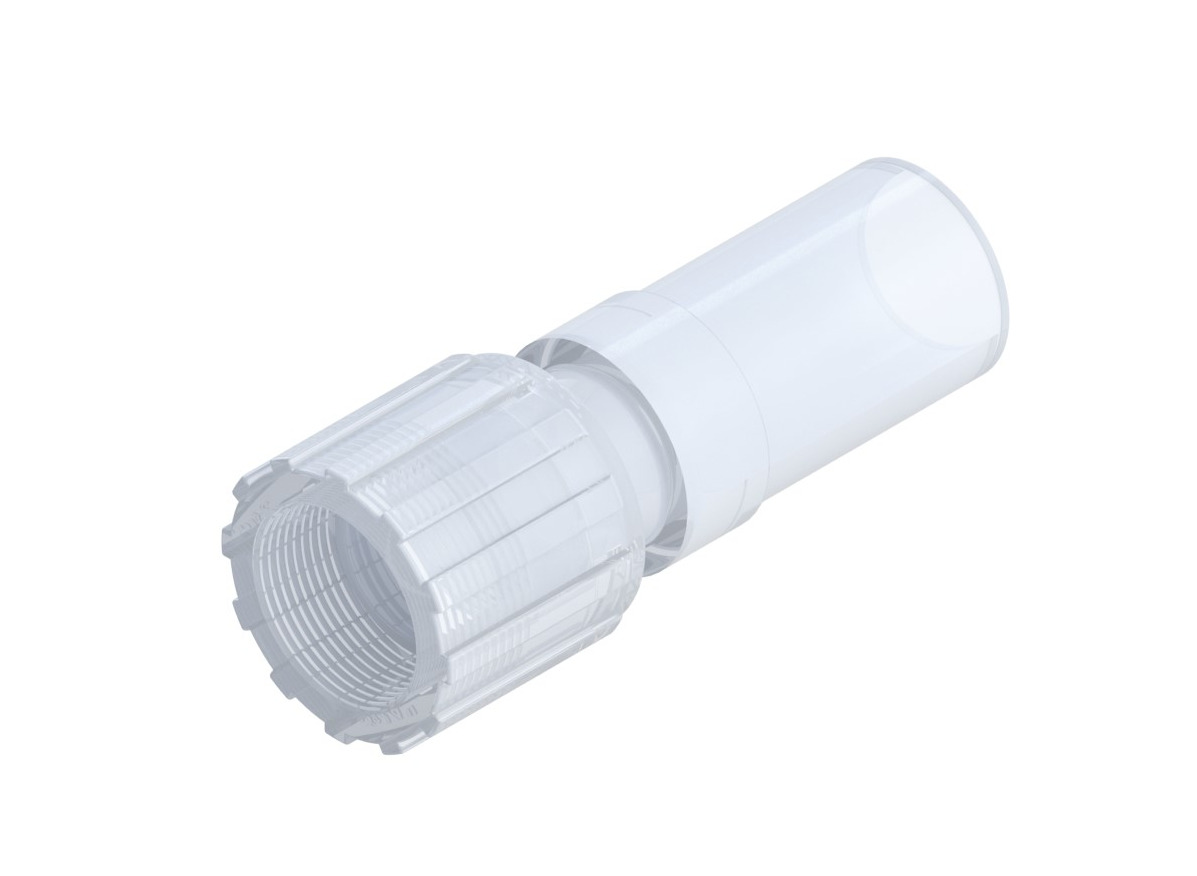

| WSC12P-12TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 3/4"P X 3/4"TF, PFA W/ PFA NUT | 3/4" Pipe | 3/4" TightFLARE | N/A | N/A | 0.63 | PFA | PFA | |
|
|||||||||
| WSC12P-16TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE) 3/4"P X 1"T W/ PVDF NUT | 3/4" Pipe | 1" TightFLARE | N/A | N/A | 0.81 | PFA | PVDF | |
|
|||||||||

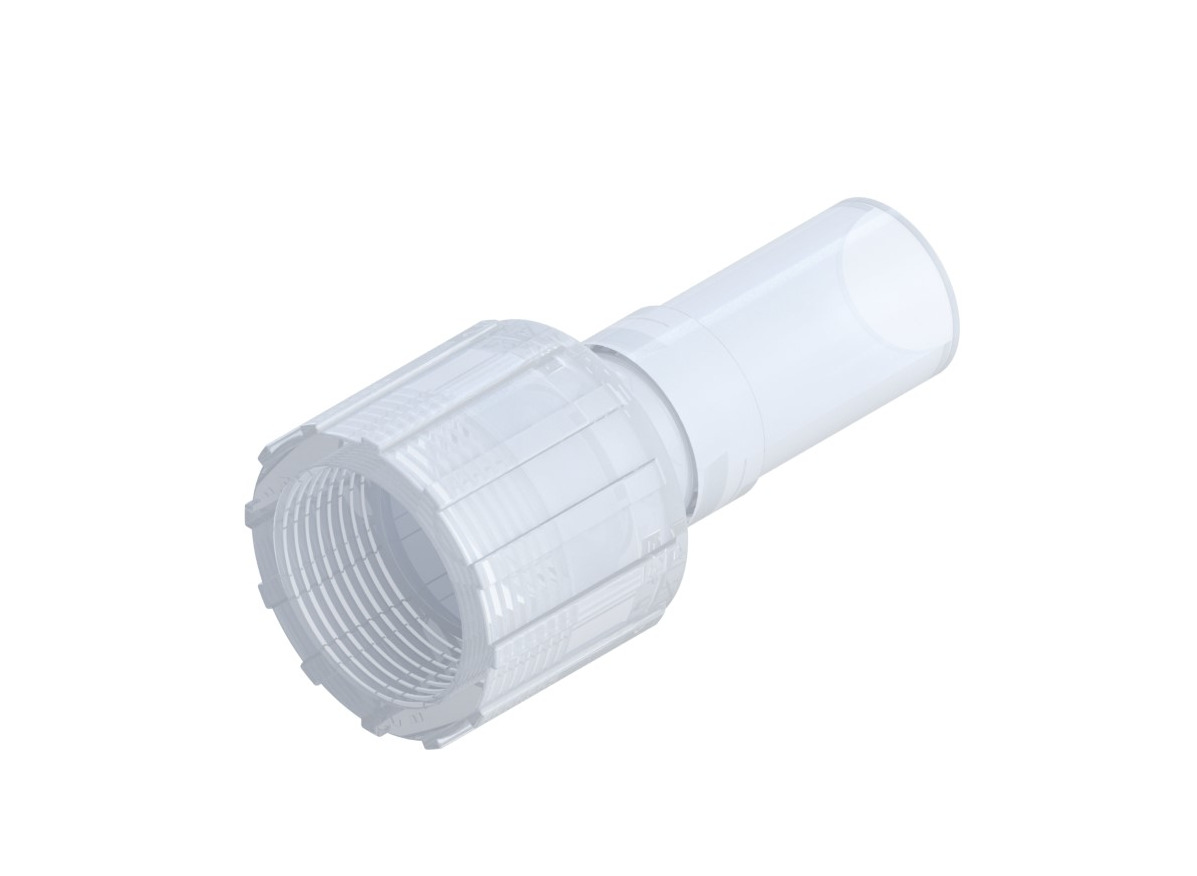

| WSC12P-16TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE) 3/4"P x 1"T W/ PFA NUT | 3/4" Pipe | N/A | 1" TightFLARE | 0.81 | PFA | N/A | PFA | |
|
|||||||||

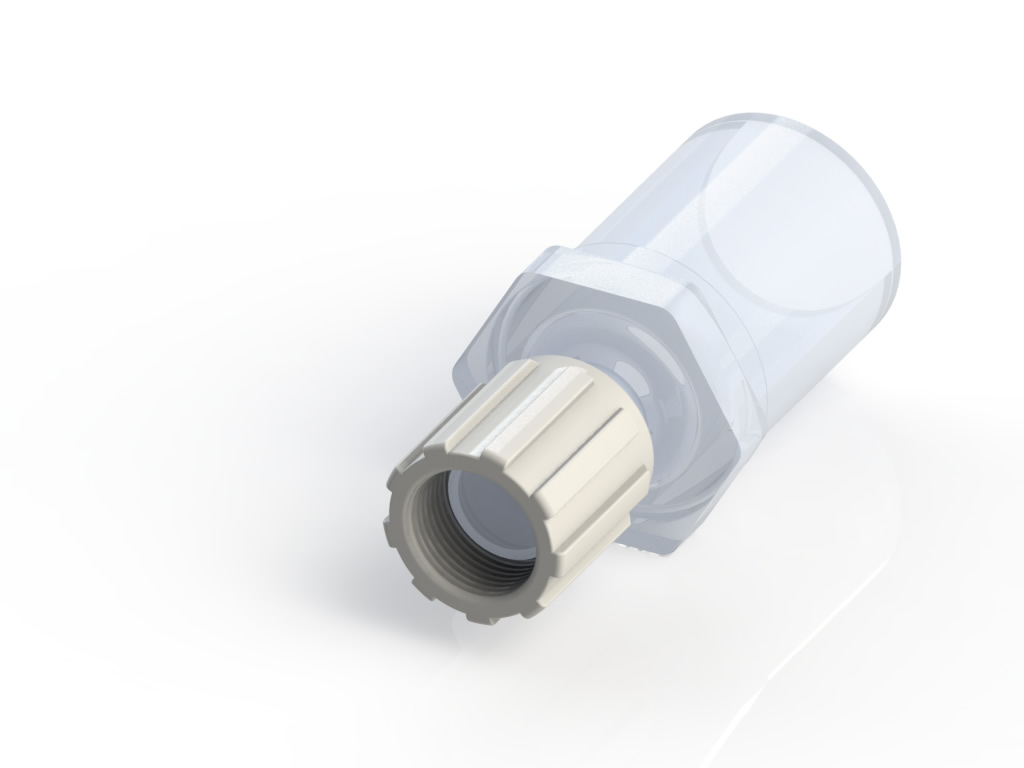

| WSC16P-8TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1"P x 1/2"TF, PFA W/ PVDF NUT | 1" Pipe | 1/2" TightFLARE | N/A | N/A | 0.38 | PFA | PVDF | |
|
|||||||||
| WSC16P-12TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE), 1"P x 3/4"TF, PFA W/ PVDF NUT | 1" Pipe | 3/4" TightFLARE | N/A | N/A | 0.63 | PFA | PVDF | |
|
|||||||||

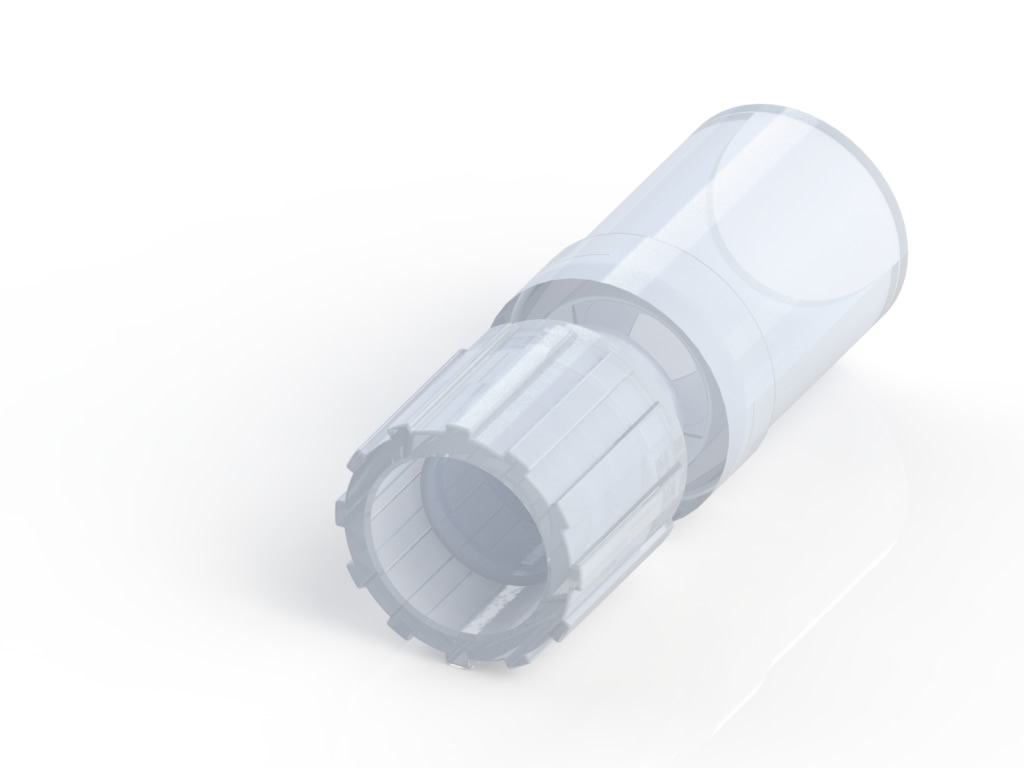

| WSC16P-12TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE), 1"P x 3/4"TF, PFA W/ PFA NUT | 1" Pipe | 3/4" TightFLARE | N/A | N/A | 0.63 | PFA | PFA | |
|
|||||||||
| WSC16P-16TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE) 1"P x 1"T W/ PVDF NUT | 1" Pipe | 1" TightFLARE | N/A | N/A | 0.88 | PFA | PVDF | |
|
|||||||||

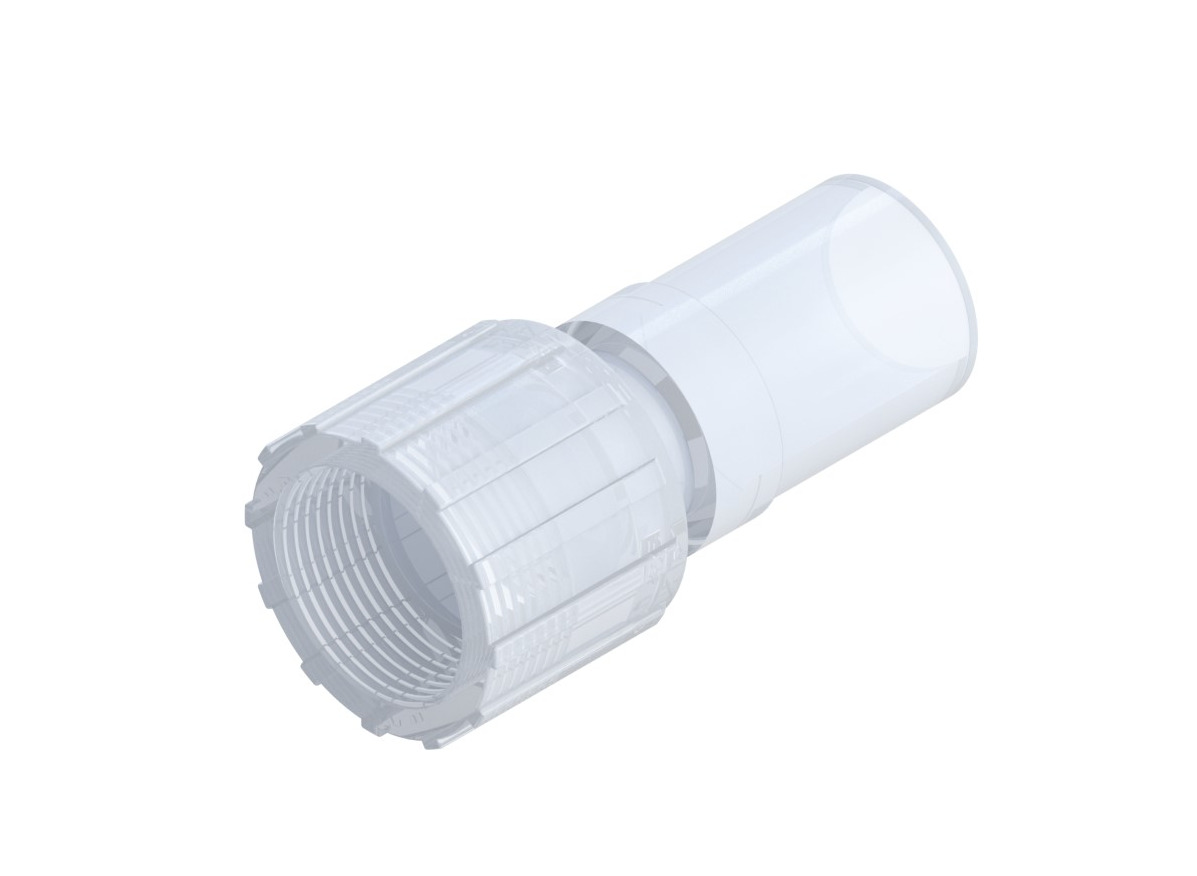

| WSC16P-16TN-3 | WELD STRAIGHT CONNECTOR (TightFLARE) 1"P x 1"T W/ PFA NUT | 1" Pipe | 1" TightFLARE | N/A | N/A | 0.88 | PFA | PFA | |
|
|||||||||
| WSC16P-20TN-1 | WELD STRAIGHT CONNECTOR (TightFLARE) 1"P X 1 1/4"T W/ PVDF NUT | 1" Pipe | 1-1/4" TightFLARE | N/A | N/A | 1.03 | PFA | PVDF | |
|
|||||||||

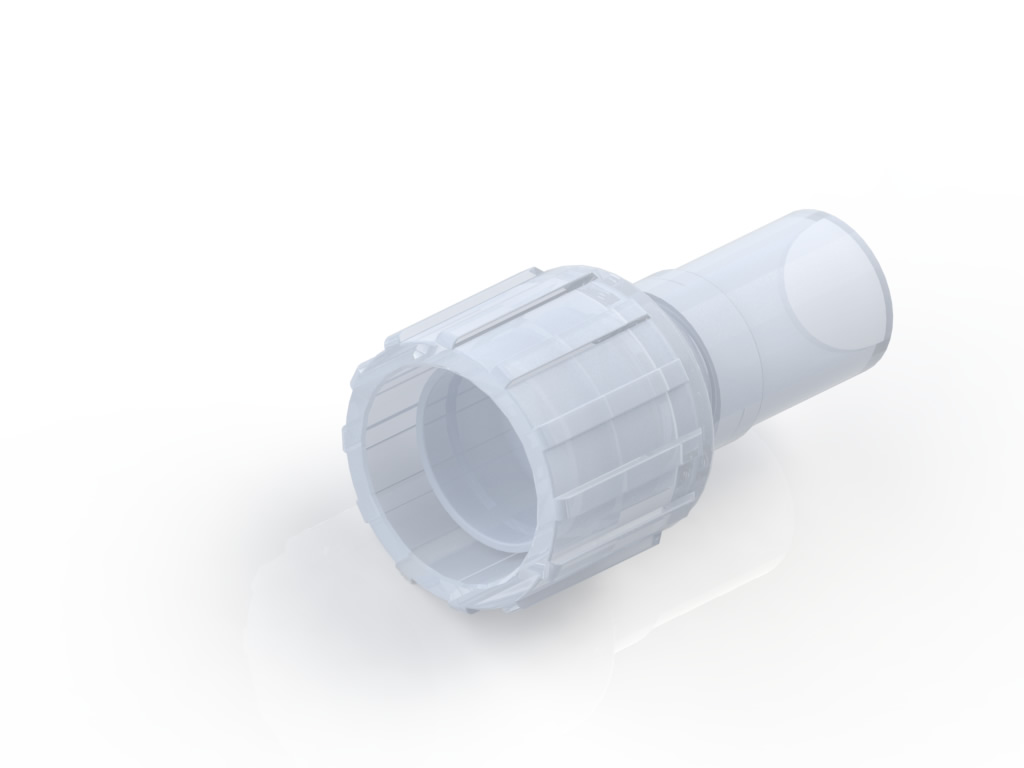

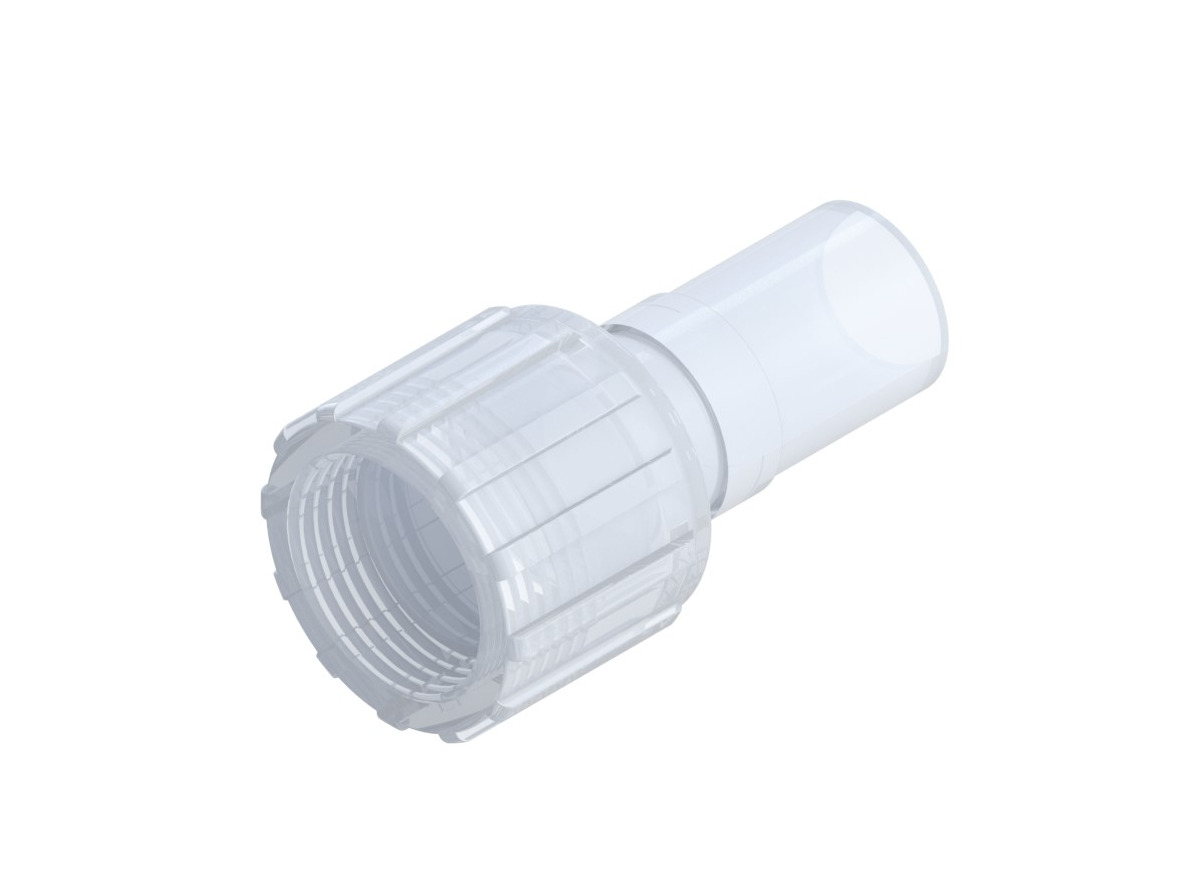

| WSC16P-20TN-3 | WELD STRAIGHT CONNECTOR(TightFLARE) 1"P x 1 1/4"T W/ PFA NUT | 1" Pipe | 1-1/4" TightFLARE | N/A | N/A | 1.03 | PFA | PFA | |
|
|||||||||
