GrabLOC™ Fittings & Wrenches

GrabLOC™ Double Containment Fittings

(Non-Terminating)

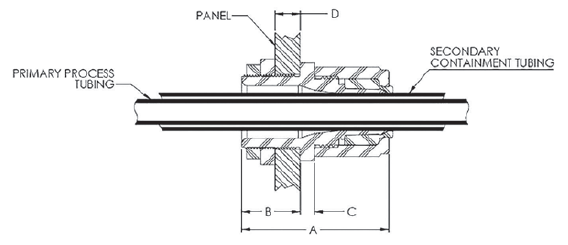

PMBP series panel mount fittings allow the primary and secondary tubes to pass through the fitting body. This allows chemistry to flow back to the supply source if the primary tube leaks.

Features
• PFA Fitting Body
• PVDF Nut

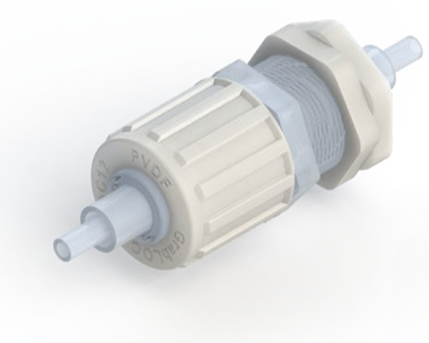

GrabLOC Fitting PMBP Non-Terminating

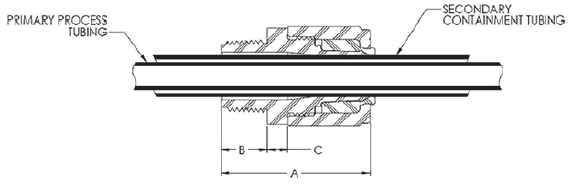

MCBP series fittings are used on a box or cabinet that have a female NPT. The primary and secondary tubing pass through the fitting body. This allows chemistry to flow back to the supply source if the primary tube leaks.

Features
• PFA Fitting Body
• PVDF Nut
• MNPT Connection

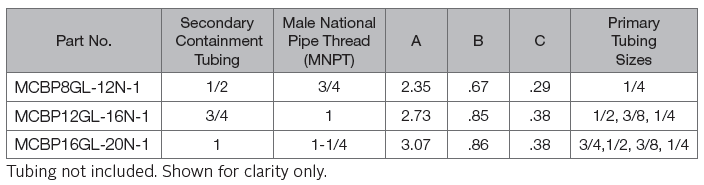

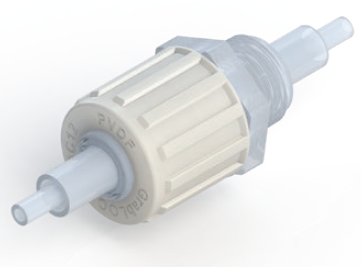

GrabLOC Fitting MCBP Non-Terminating
